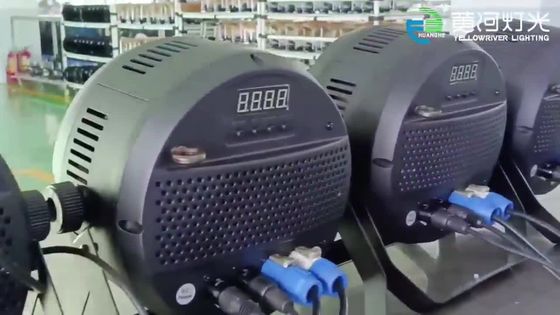

YELLOW RIVER LED Indoor Par Light 4*50W 4IN1 YR-N04Q

Light source	Light source	4x50W(RGBW 4 IN 1)
	Lifespan	50,000 hours
	Antistatic	up to 2000V HBM
	Light Angle	25 degrees
Control parameters	Strobe	0-20Hz, standard stroboscopic
	Dimming	Standard linear dimming
	Control signal	DMX512(Digital MultipleX 512)+RDM
	Control channel	9 channels, 6 channels
	Operation mode	console, manual, master-slave, optional WIFI+ mobile APP control
	Cooling mode	Fan temperature control start, by fin + fan for heat dissipation
	Color	RGBW
	Noise	intelligent temperature, active heat dissipation, the fan is silent when it is turned off below 40 degrees, the fan starts to rotate above 40 degrees, the maximum noise is 43.0dBA(close to the ambient noise), and the fan is silent and intelligent power reduction can be selected
	Scanning	horizontal 540 degrees 3.2S/ cycle, vertical 270 degrees 1.3S/ cycle, three-phase motor, using photoelectric reset + Hall correction double precision reset, so that positioning is more accurate, while automatic error correction, with automatic return function
	Over temperature protection	reduced power protection at high temperature above 80 degrees
	Real-time monitoring	light source temperature, signal display
Working parameters	Working voltage	AC100V-240V (50/60HZ)
	Rated total power	220W
	Power factor	0.56
	Rated current	1.0A
	Maximum operating temperature	<40 degrees
	Signal interface	Signal socket 3 sin male + female, can plug DMX512 wireless signal receiver
	Signal interface	IP rate: IP20
	IP rate	IP20
	Net weight	2.9KG
