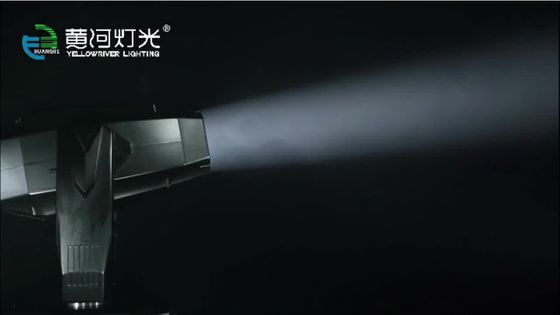

Hybrid Moving Head manufacturer Moving Head Light 380W

Electrical	Voltage	100V ~240V
	Power consumption	550W
Light Source	Halogen lamp	18R, 380W
	Lamp life span	1500H
	CCT	8000K
Control Mode	DMX512	20 CH
	Master/slave	√
	Auto	√
	RDM	√
Optical System	Fixed Gobo Wheel 1	9 gobos+ white open + Shake + bi-direction flow effect;
	Fixed Gobo Wheel 2	10 gobos+ 4 different size beam holes + Shake + bi-direction flow effect;
	Rotation Gobo Wheel	6 gobos + water wave glass endless rotation+ white open + bi-direction flow effect.
	Color wheel	13color+ + White open + semi-color effect;
	Prism	8 facet + 16 facet
	Shutter	1~20t/s
	Dimmer	0-100%
	Focus/Zoom	√
	Beam angle	2.3° - 50 °
	X/Y scan	Three-phase motor, pan 540°,tilt:270°, photoelectric reset and correction
	Display	1pc screen touch display + 4pc buttons, LCD color screen, can set the channel mode, horizontal vertical inversion, back screen, signal hint, switch in both Chinese and English, automatic screen off/lasting bright screen, display channel number,record light source time, boot time and fault inspection, scene setting, the software version information, restore factory Settings
	Signal interface	3 pin
	Power interface	1 out powercon
Safety protection	the power will be cut off automatically when the fixture is overheating or with system error


Machine W. Size	23.45kg 409.9323.9670.5mm
Environment& safty	Level of Protection	IP20
	Stock	Clean and dry place
	Running temp.	-10°C~40°C
