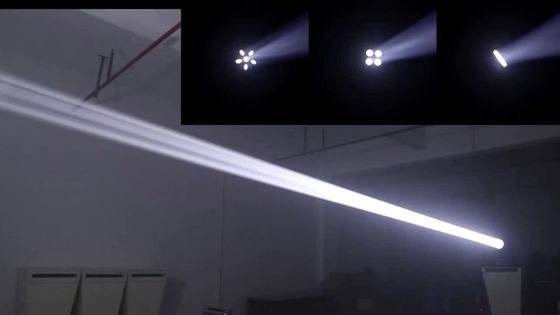

High power 482W MOVING HEAD BEAM LIGHT YR-462B for stage
- 商品详情
| Working parameters | voltage | AC100V-240V (50/60HZ) | |
| Total rated power | 750W | ||
| Power factor | 0.99 | ||
| Rated current | 3.41A | ||
| Ambient temperature | 40 degrees | ||
| Light source | Light source | 482W | |
| Light source life | 2000 hours | ||
| Control mode | DMX512 | √ | |
| RDM | √ | ||
| Master/slave | √ | ||
| Manual control | √ | ||
| Sound Active | √ | ||
| auto | √ | ||
| Control channels | 16 channels /20 channels | ||
| Optical system | Beam Angle | 1.3° | |
| Dimmer | Linear dimming | ||
| Strobe | two-piece stroboscopic 1-30 times/second, support pulse stroboscopic + effect stroboscopic + random stroboscopic | ||
| Color | 1 color plate: 14 German imported technology high-gloss coating color plate + white light, step conversion color, with two-way variable speed flow effect and rainbow effect 6 high-gloss coating colors, with prism can produce six-color prism effect | ||
| Gobo | 1 metal pattern plate: 17 gobos + white light, step conversion pattern, with variable speed jitter, two-way variable speed flow effect | ||
| Prism | 1pcs 8-prism +1 double-layer honeycomb prism, can be superimposed, can be independently rotated, with bidirectional variable speed | ||
| IP rate | IP20 | ||
| S/N | Function | ||
| 1 | Color | ||
| 2 | Strobe | ||
| 3 | Dimming | ||
| 4 | Gobo | ||
| 5 | Prism 1 | ||
| 6 | Prism 1 rotation | ||
| 7 | Prism 2 | ||
| 8 | Prism 2 rotation | ||
| 9 | focusing | ||
| 10 | X-axis | ||
| 11 | X-axis trim | ||
| 12 | Y-axis | ||
| 13 | Y-axis fine-tuning | ||
| 14 | XY velocity | ||
| 15 | Atomizing/colorful | ||
| 16 | Bulb control & reset | ||
| 20CH | 17 | reserve | 000-255 Speed from fast to slow |
| 18 | Color wheel speed | ||
| 19 | Dimming - Prism - frost speed | ||
| 20 | Pattern speed | ||
